Hand-held Biopotential Electrodes Assembly

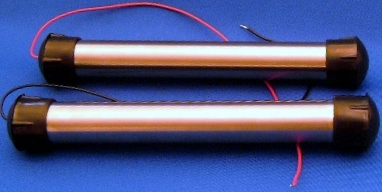

Hand-held Biopotential Electrodes

Parts List:

  • 2 x Hand-held Biopotential Electrodes
  • 2 x 330K resistors
  • 2 x 3.3V zener diodes
ecg schematic

Fig 1: Connecting the EMANT380 Bluetooth DAQ to the Hand-held Biopotential Electrodes Assembly

ecg circuit

Fig 2: Connecting the Bluetooth Starter Kit to the Hand-held Biopotential Electrodes Assembly

We recommend using the Hand-held Biopotential Electrodes Assembly with the Bluetooth Starter Kit

Price US$20
Status Discontinued
