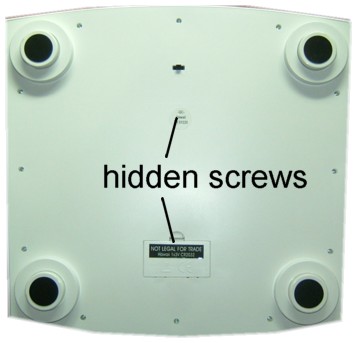

  1. Remove screws to expose the strain gages.

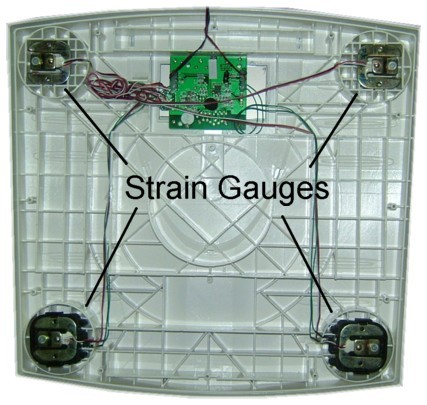

  2. Remove all the unnecessary electronics leaving only the strain gages. The bottom gages comes with switches.

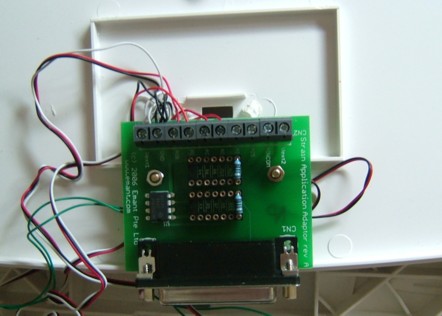

  3. Gages and switches connected to the strain application adaptor mounted onto the bottom part of the weighing scale.

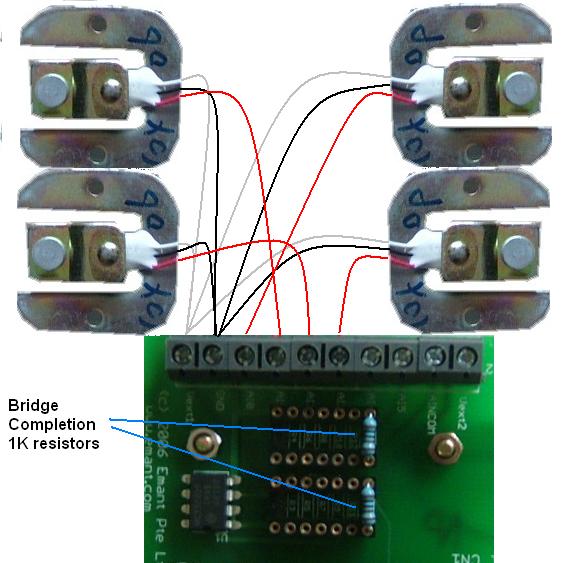

  4. Connection diagram for the strain gages
