Measure Biopotential / ECG

Warning: This application note is for learning and development only. It is not for Medical Diagnostic Use. Should be used solely by or under the supervision of qualified engineers and technicians who are familiar with the risks associated with handling electrical circuits.

An electrocardiogram (ECG or EKG, abbreviated from the German Elektrokardiogramm) records the electrical voltage in the heart in the form of a graph. It is the prime tool in cardiac electrophysiology, and its function is in the screening and diagnosis of cardiovascular diseases.

Python and LabVIEW example programs for the EMANT380 Bluetooth DAQ are provided. The folder Python and LabVIEW ECG examples for EMANT380 can be downloaded from (customers access only)



  1. Windows - Python 2.6.6)
  2. PyBluez 0.19
  3. Scipy 0.9.0
  4. Numpy 1.6.1rc3
  5. Matplotlib 1.0.1


  1. Windows FDS Ver 7.0 upwards

Example programs are intended for experienced Python/LabVIEW users only.


  1. Pair the EMANT380 to PC.
  2. You must modify the bluetooth MAC address (Python) or COM address (LabView) for your EMANT380 module before running the example. The example is written Bluetooth Starter Kit.
ecg schematic

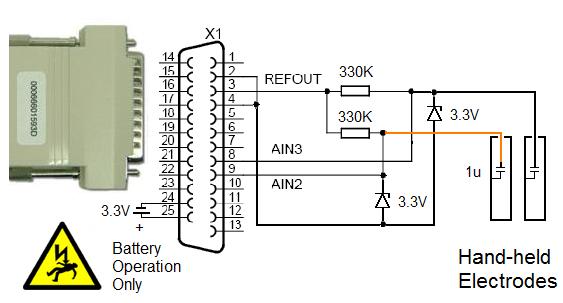

Fig 1: Connecting the EMANT380 Bluetooth DAQ to the Hand-held Biopotential Electrodes Assembly

ecg connections

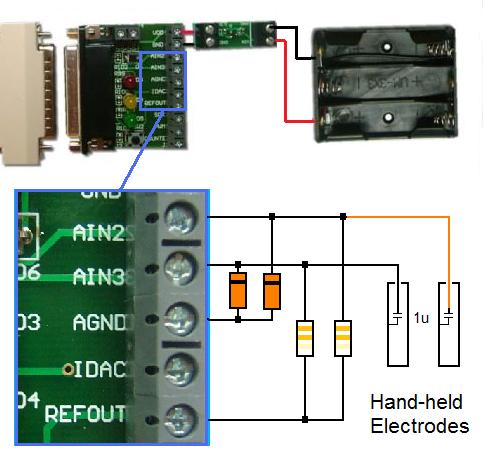

Fig 2: Connecting the Bluetooth Starter Kit to the Hand-held Biopotential Electrodes Assembly

import matplotlib.pyplot as plt import time import random import math import emant from scipy import fft, ifft MAINS_FREQ = 50 NOTCH_LENGTH_AVERAGE = 4 ScanRate = MAINS_FREQ * NOTCH_LENGTH_AVERAGE NumSamples = ScanRate * 2 + NOTCH_LENGTH_AVERAGE def HighPass(ECGdata): fftECG = fft(ECGdata) for i in range(len(fftECG)): if i<8 or i>(NumSamples-NOTCH_LENGTH_AVERAGE-8): fftECG[i]=0 return ifft(fftECG) def NotchMains(ECGdata): filteredECG=[] for i in range(len(ECGdata)-NOTCH_LENGTH_AVERAGE): filteredECG.append((sum(ECGdata[i:(i+NOTCH_LENGTH_AVERAGE)])/NOTCH_LENGTH_AVERAGE)) return filteredECG m = emant.Emant300() #change this mac address to your EMANT380 Bluetooth DAQ module m.Open("00:06:66:00:A1:D8",True) print "Hardware Id: " + m.HwId() r,actScanRate = m.ConfigAnalog(1, emant.Emant300.Bipolar, ScanRate) print "Actual Scan Rate: " + str(actScanRate) fig = plt.figure() ax = fig.add_subplot(3, 1, 1) bx = fig.add_subplot(3, 1, 2) cx = fig.add_subplot(3, 1, 3) # Create a new timer object. Interval set to 2.5 secs timer = fig.canvas.new_timer(interval=2500) loop = True def update_graph(axesa,axesb,axesc): global timer, loop if loop: ECGdata = m.ReadAnalogWaveform(emant.Emant300.AIN2,emant.Emant300.AIN3,NumSamples) Notchfiltered = NotchMains(ECGdata) HighPassed = HighPass(Notchfiltered) axesa.cla() axesa.plot(ECGdata[10:NumSamples-10]) # update the data axesb.cla() axesb.plot(Notchfiltered[10:NumSamples-10]) axesc.cla() axesc.plot(HighPassed[10:NumSamples-10]) axesa.figure.canvas.draw() else: plt.close() def onclick(event): global loop loop = not(event.button==3) # right mouse click on graph to end program cid = fig.canvas.mpl_connect('button_press_event', onclick) # tell the timer what function should be called timer.add_callback(update_graph, ax, bx, cx) update_graph(ax,bx,cx) timer.start() timer.stop() m.Close()


  1. Filter functions modified from the filter module in the The National Telehealth Initiative
  2. Waveform is refreshed every 2.5 secs
  3. Right mouse click on graph to end program

The Python for Android ECG (Py4A) example can be found at the website.

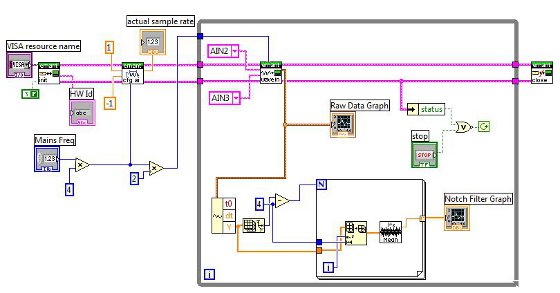

ECG LabVIEW Diagram
