Using the Auto Blood Pressure Adaptor with the EMANT380

Question: Can I use the Auto Blood Pressure Adaptor with the EMANT380

Answer: The Auto Blood Pressure Adaptor was designed to control an air pump and solenoid using the EMANT300 USB DAQ. This allows for automatic oscillometric method of measuring the blood pressure. To use this board with the EMANT380 Bluetooth DAQ, the following needs to be modified

  1. 6V power supply is required to power the air pump and solenoid
  2. 3.3V power supply for the EMANT380 Bluetooth DAQ through the 3.3V regulator
  3. The application program needs to be modified so that the COM port assigned to EMANT380 is set and Find is set to False.

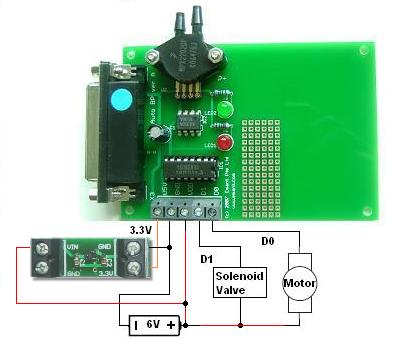

Below is a picture of the recommended connection. Do connect the terminals correctly.

Connect EMANT380 to the Auto Blood Pressure adaptor
