The following information is for the EMANT380

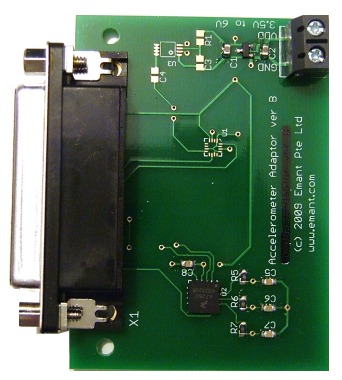

ACCELEROMETER APPLICATION ADAPTOR FOR EMANT380

The Accelerometer Application Adaptor connects the Freescale MMA7260QT, ±1.5g - 6g Three Axis Low-g Micromachined Accelerometer to the EMANT380 Bluetooth DAQ module.

FEATURES

• Selectable Sensitivity (1.5g/2g/4g/6g)
• High Sensitivity (800 mV/g @ 1.5g)
• Typical Applications
• Pedometer: Motion Sensing
• Inclinometer
• Navigation: Pitch and Roll Demonstration
• Gaming: Tilt and Motion Sensing

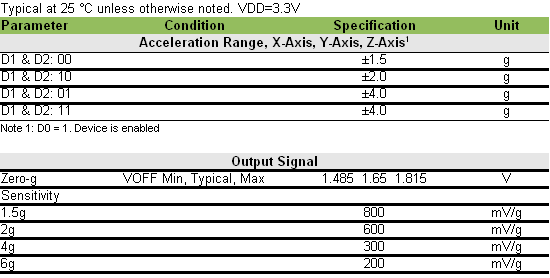

Adaptor Specifications

Please see MMA7260QT specifications for full sensor information.

Connect to the EMANT380 Bluetooth DAQ

1. Connect the adaptor to the EMANT380 Bluetooth DAQ module
2. Connect power supply (3.5V to 6V Max)

Specification (PDF file size 188K)

Price US$29
Status Discontinued
