The following information is for the EMANT380

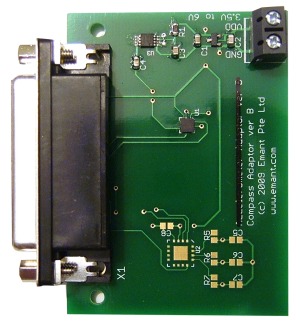

COMPASS APPLICATION ADAPTOR FOR EMANT380
The Compass Application Adaptor connects the Honeywell HMC1052
magnetoresistive sensors designed for low field magnetic sensing to the EMANT380 Bluetooth DAQ module.
FEATURES
- 4 Element Wheatstone Bridge
- Designed to measure direction and magnitude of Earth’s magnetic fields, from 120 micro-gauss to 6 gauss

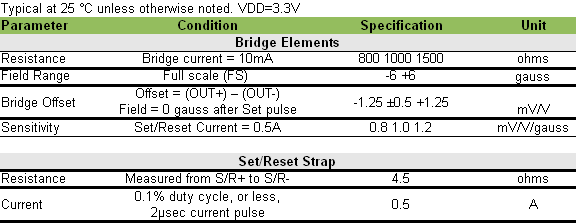

Adaptor Specifications
Please see HMC1052 specifications for full sensor information.
Connect to the EMANT380 Bluetooth DAQ
- Connect the adaptor to the EMANT380 Bluetooth DAQ module
- Connect power supply (3.5V to 6V Max)
Specification (PDF file size 197K)
Price US$29
Status Discontinued
